HSGP#

class pymc_marketing.mmm.hsgp.HSGP(**data)[source]#

HSGP component.

Examples

Literature recommended HSGP configuration:

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt

from pymc_marketing.mmm import HSGP

seed = sum(map(ord, "Out of the box GP"))
rng = np.random.default_rng(seed)

n = 52
X = np.arange(n)

hsgp = HSGP.parameterize_from_data(
    X=X,
    dims="time",
)

dates = pd.date_range("2022-01-01", periods=n, freq="W-MON")
coords = {
    "time": dates,
}
prior = hsgp.sample_prior(coords=coords, random_seed=rng)
curve = prior["f"]
hsgp.plot_curve(curve, sample_kwargs={"rng": rng})
plt.show()

(Source code, png, hires.png, pdf)

../../_images/pymc_marketing-mmm-hsgp-HSGP-1.png

HSGP with different covariance function

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt

from pymc_marketing.mmm import HSGP

seed = sum(map(ord, "Change of covariance function"))
rng = np.random.default_rng(seed)

n = 52
X = np.arange(n)

hsgp = HSGP.parameterize_from_data(
    X=X,
    cov_func="matern32",
    dims="time",
)

dates = pd.date_range("2022-01-01", periods=n, freq="W-MON")
coords = {
    "time": dates,
}
prior = hsgp.sample_prior(coords=coords, random_seed=rng)
curve = prior["f"]
hsgp.plot_curve(curve, sample_kwargs={"rng": rng})
plt.show()

(Source code, png, hires.png, pdf)

../../_images/pymc_marketing-mmm-hsgp-HSGP-2.png

New data predictions with HSGP

import numpy as np
import pandas as pd

import pymc as pm

import matplotlib.pyplot as plt

from pymc_marketing.mmm import HSGP
from pymc_marketing.prior import Prior

seed = sum(map(ord, "New data predictions"))
rng = np.random.default_rng(seed)

eta = Prior("Exponential", lam=1)
ls = Prior("InverseGamma", alpha=2, beta=1)
hsgp = HSGP(
    eta=eta,
    ls=ls,
    m=20,
    L=150,
    dims=("time", "channel"),
)

n = 52
X = np.arange(n)

dates = pd.date_range("2022-01-01", periods=n, freq="W-MON")
coords = {"time": dates, "channel": ["A", "B"]}
with pm.Model(coords=coords) as model:
    data = pm.Data("data", X, dims="time")
    hsgp.register_data(data).create_variable("f")
    idata = pm.sample_prior_predictive(random_seed=rng)

prior = idata.prior

n_new = 10
X_new = np.arange(n, n + n_new)
new_dates = pd.date_range("2023-01-01", periods=n_new, freq="W-MON")

with model:
    pm.set_data(
        new_data={
            "data": X_new,
        },
        coords={"time": new_dates},
    )
    post = pm.sample_posterior_predictive(
        prior,
        var_names=["f"],
        random_seed=rng,
    )

chain, draw = 0, 50
colors = ["C0", "C1"]

def get_sample(curve):
    return curve.loc[chain, draw].to_series().unstack()

ax = prior["f"].pipe(get_sample).plot(color=colors)
post.posterior_predictive["f"].pipe(get_sample).plot(
    ax=ax, color=colors, linestyle="--", legend=False
)
ax.set(xlabel="time", ylabel="f", title="New data predictions")
plt.show()

(Source code, png, hires.png, pdf)

../../_images/pymc_marketing-mmm-hsgp-HSGP-3.png

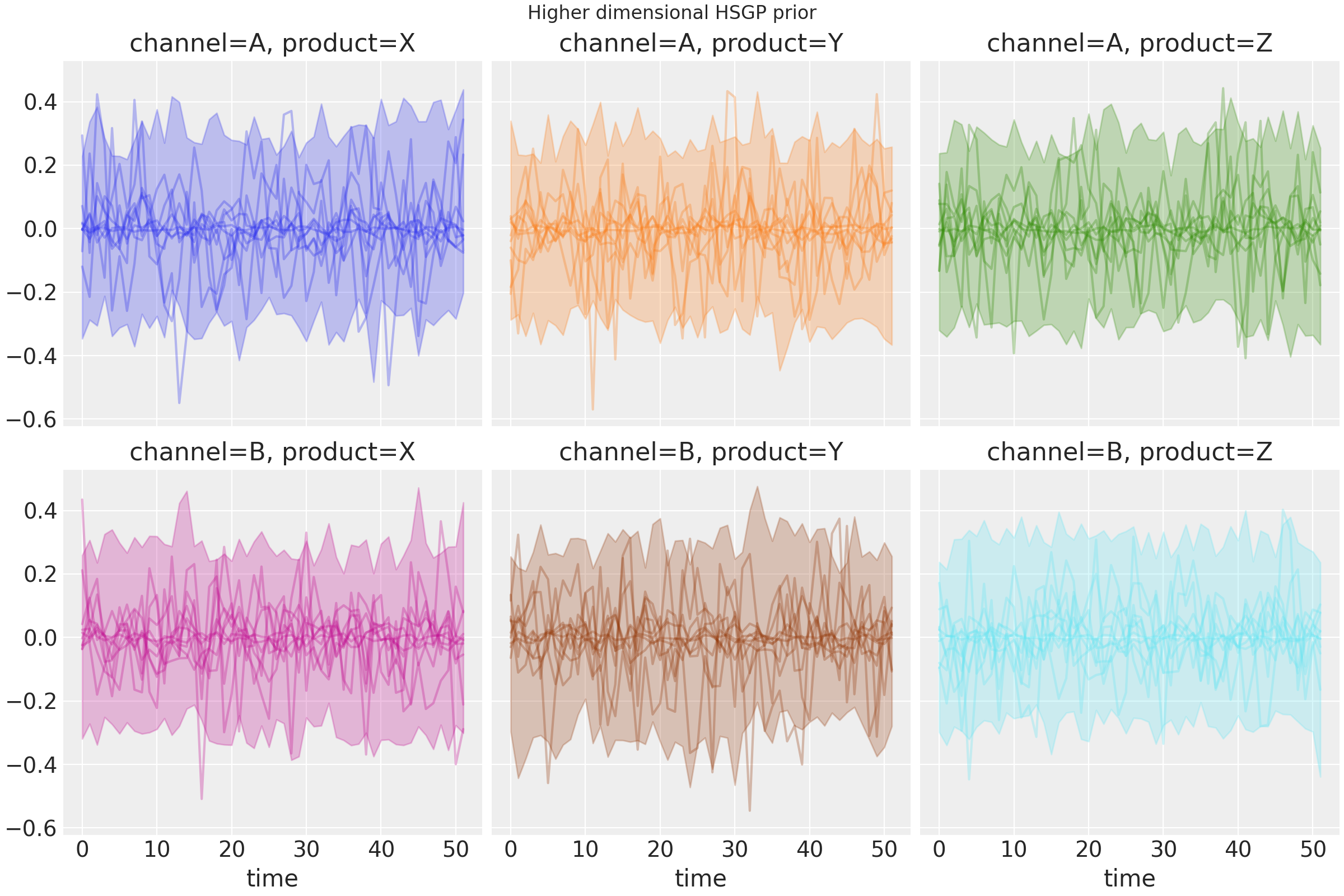

Higher dimensional HSGP

import numpy as np
import pymc as pm

import matplotlib.pyplot as plt

from pymc_marketing.mmm import HSGP

seed = sum(map(ord, "Higher dimensional HSGP"))
rng = np.random.default_rng(seed)

n = 52
X = np.arange(n)

hsgp = HSGP.parameterize_from_data(
    X=X,
    dims=("time", "channel", "product"),
)

coords = {
    "time": range(n),
    "channel": ["A", "B"],
    "product": ["X", "Y", "Z"],
}
prior = hsgp.sample_prior(coords=coords, random_seed=rng)
curve = prior["f"]
fig, _ = hsgp.plot_curve(
    curve,
    sample_kwargs={"rng": rng},
    subplot_kwargs={"figsize": (12, 8), "ncols": 3},
)
fig.suptitle("Higher dimensional HSGP prior")
plt.show()

(Source code, png, hires.png, pdf)

../../_images/pymc_marketing-mmm-hsgp-HSGP-4.png

Methods

`HSGP.__init__`(**data)	Create a new model by parsing and validating input data from keyword arguments.
`HSGP.construct`([_fields_set])
`HSGP.copy`(*[, include, exclude, update, deep])	Returns a copy of the model.
`HSGP.create_variable`(name)	Create a variable from HSGP configuration.
`HSGP.deterministics_to_replace`(name)	Name of the Deterministic variables that are replaced with pm.Flat for out-of-sample.
`HSGP.dict`(*[, include, exclude, by_alias, ...])
`HSGP.from_dict`(data)	Create an object from a dictionary.
`HSGP.from_orm`(obj)
`HSGP.json`(*[, include, exclude, by_alias, ...])
`HSGP.model_construct`([_fields_set])	Creates a new instance of the `Model` class with validated data.
`HSGP.model_copy`(*[, update, deep])	Usage docs: https://docs.pydantic.dev/2.10/concepts/serialization/#model_copy
`HSGP.model_dump`(*[, mode, include, exclude, ...])	Usage docs: https://docs.pydantic.dev/2.10/concepts/serialization/#modelmodel_dump
`HSGP.model_dump_json`(*[, indent, include, ...])	Usage docs: https://docs.pydantic.dev/2.10/concepts/serialization/#modelmodel_dump_json
`HSGP.model_json_schema`([by_alias, ...])	Generates a JSON schema for a model class.
`HSGP.model_parametrized_name`(params)	Compute the class name for parametrizations of generic classes.
`HSGP.model_post_init`(_BaseModel__context)	Override this method to perform additional initialization after `__init__` and `model_construct`.
`HSGP.model_rebuild`(*[, force, raise_errors, ...])	Try to rebuild the pydantic-core schema for the model.
`HSGP.model_validate`(obj, *[, strict, ...])	Validate a pydantic model instance.
`HSGP.model_validate_json`(json_data, *[, ...])	Usage docs: https://docs.pydantic.dev/2.10/concepts/json/#json-parsing
`HSGP.model_validate_strings`(obj, *[, ...])	Validate the given object with string data against the Pydantic model.
`HSGP.parameterize_from_data`(X, dims[, ...])	Create a HSGP informed by the data with literature-based recommendations.
`HSGP.parse_file`(path, *[, content_type, ...])
`HSGP.parse_obj`(obj)
`HSGP.parse_raw`(b, *[, content_type, ...])
`HSGP.plot_curve`(curve[, subplot_kwargs, ...])	Plot the curve.
`HSGP.register_data`(X)	Register the data to be used in the model.
`HSGP.sample_prior`([coords])	Sample from the prior distribution.
`HSGP.schema`([by_alias, ref_template])
`HSGP.schema_json`(*[, by_alias, ref_template])
`HSGP.to_dict`()	Convert the object to a dictionary.
`HSGP.update_forward_refs`(**localns)
`HSGP.validate`(value)

Attributes

`model_computed_fields`
`model_config`	Configuration for the model, should be a dictionary conforming to [`ConfigDict`][pydantic.config.ConfigDict].
`model_extra`	Get extra fields set during validation.
`model_fields`
`model_fields_set`	Returns the set of fields that have been explicitly set on this model instance.
`ls`
`eta`
`L`
`centered`
`drop_first`
`cov_func`
`m`
`X`
`X_mid`
`dims`
